Model Variations
      With FlexStand, Without Stand
Cabinet Color
      White, Black
Panel
Type
      IPS
Backlight
      LED
Size
      27.0" / 68.5 cm
Native Resolution
Viewable Image Size (H x V)
      596.7 x 335.7 mm
Pixel Pitch
Display Colors
      16.77 million
Viewing Angles (H / V, typical)
      178°, 178°
Brightness (typical)
      350 cd/m
Contrast Ratio (typical)
Response Time (typical)
      5 ms (Gray-to-gray)
Video Signals
Input Terminals
Digital Scanning Frequency (H / V)
USB
Function
      1 port for upstream (USB Type-C)
2-port USB hub(including 1 USB Battery charge port)
Standard
      USB 3.1 Gen1
Audio
Speakers
      1.0 W +1.0 W
Output Terminals
      3.5 mm headphone jack
Sound Adjustment
      Volume
Power
Power Requirements
      AC 100 - 240 V, 50 / 60 Hz
Maximum Power Consumption
      96 W
Typical Power Consumption
      23W
Power Save Mode
      0.5 W or less
Power Management
      Power Save (DMPM, DisplayPort 1.2a)
Features & Functions

Preset Modes
      Color mode (Paper, Movie, sRGB, User1, User2
Auto EcoView
      Yes
OSD Languages
      English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Dimensions (Landscape, W x H x D)
Dimensions (Without Stand, W x H x D)
Net Weight
Net Weight (Without Stand)
Height Adjustment Range
Tilt
      35° Up, 5° Down
Swivel
      344°
Pivot
      90°
Hole Spacing (VESA Standard)
      100 x 100 mm
Environmental Requirements
Operating Temperature
      5 - 35 °C
Operating Humidity (R.H., non condensing)
      20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.)
      TCO Certified Displays 7, EPEAT Gold (US), TUV/Ergonomics, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, EAC
Dedicated Software
Monitor Control Utility Screen InStyle
      Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
AC power cord, signal cable (USB Type-C - USB Type-C, DisplayPort - DisplayPort, HDMI -HDMI), cable cover, setup guide
Warranty
      Five Years
Zero bright sub-pixels for six months from date of purchase for purchases made on September 1, 2015 or later.
2560 x 1440 (16:9 aspect ratio)
0.233 x 0.233 mm
1000:1
USB Type-C: 31 - 89 kHz, 29 - 31 Hz and 59 - 61 Hz
DisplayPort:  31 - 89 kHz, 59 - 61 Hz
HDMI: 31 - 89 kHz, 29 - 31 Hz, 49 - 51 Hz and 59 - 61 Hz
1 port for upstream (USB Type-C)
2-port USB hub
611.6 x 390.2 - 545.2 x 245 mm
611.6 x 359 x 48.5 mm
8.1 kg / 17.9 lbs
5.3 kg / 11.7 lbs
155 mm

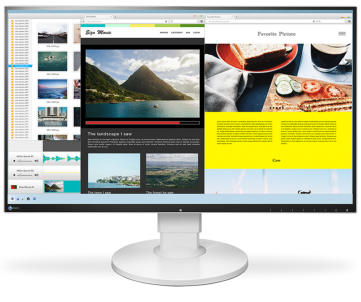

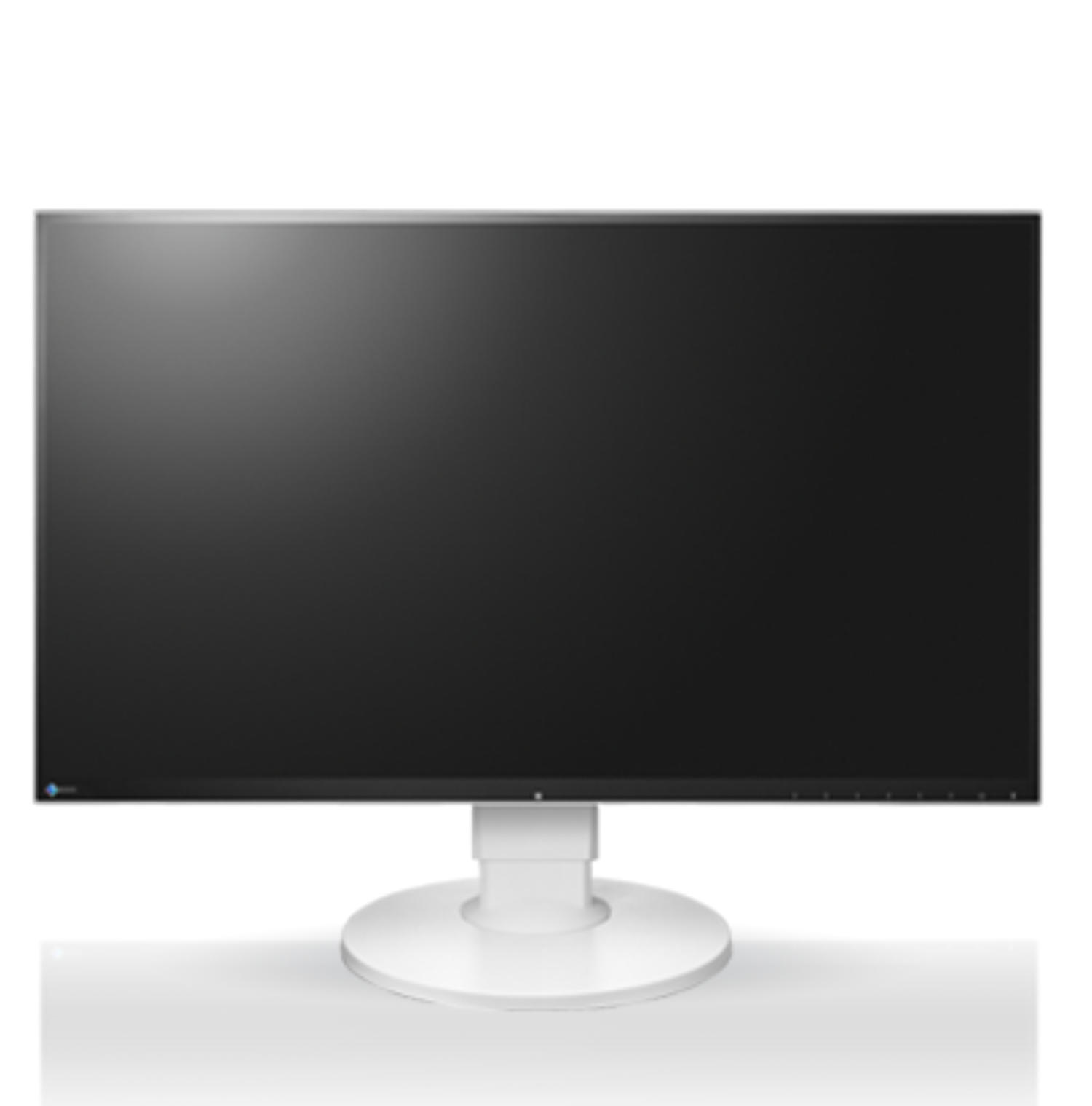

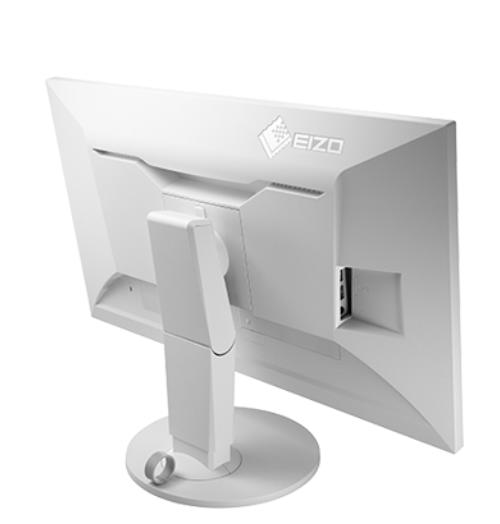

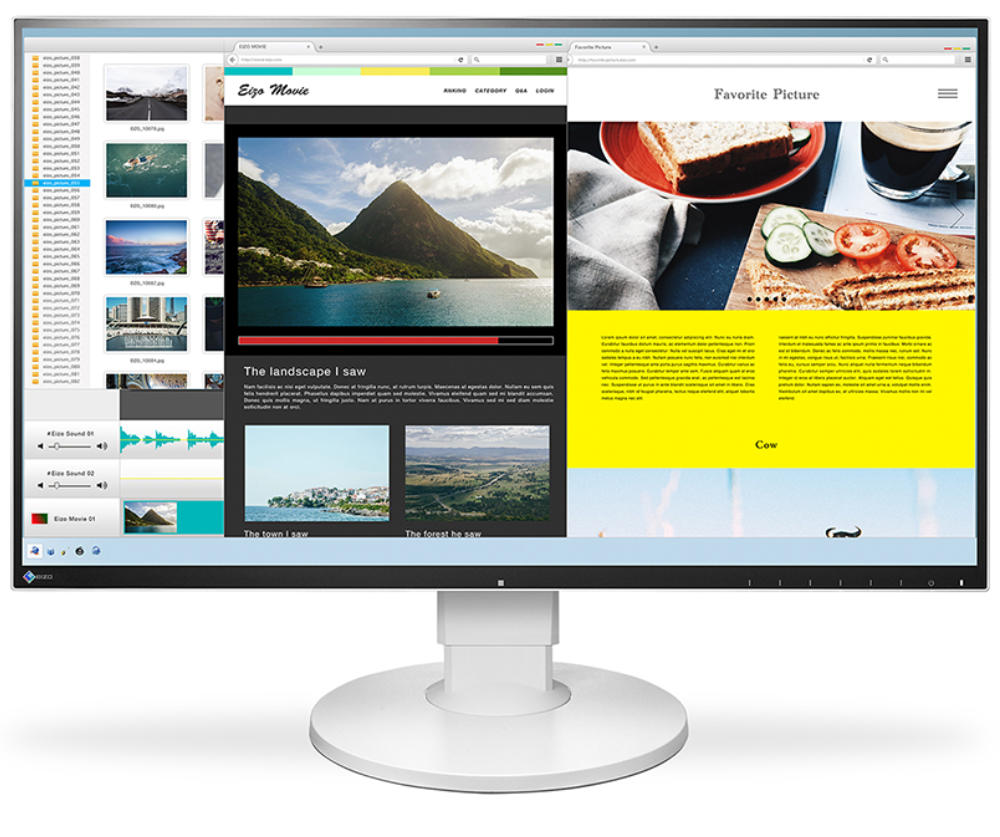

EV2780
The generous 27-inch screen holds a 4K resolution giving images great sharpness and clarity. With its sleek, frameless design and USB Type-C connectivity, the EV2785 helps you make the most of your workspace.
EV2780 EV2780 EV2780 EV2780
27" (68 cm) LCD Monitor
Increase Connectivity in Style with USB Type-C
