Features Features Specification Specification Documents Awards & Reviews EV2785 Image

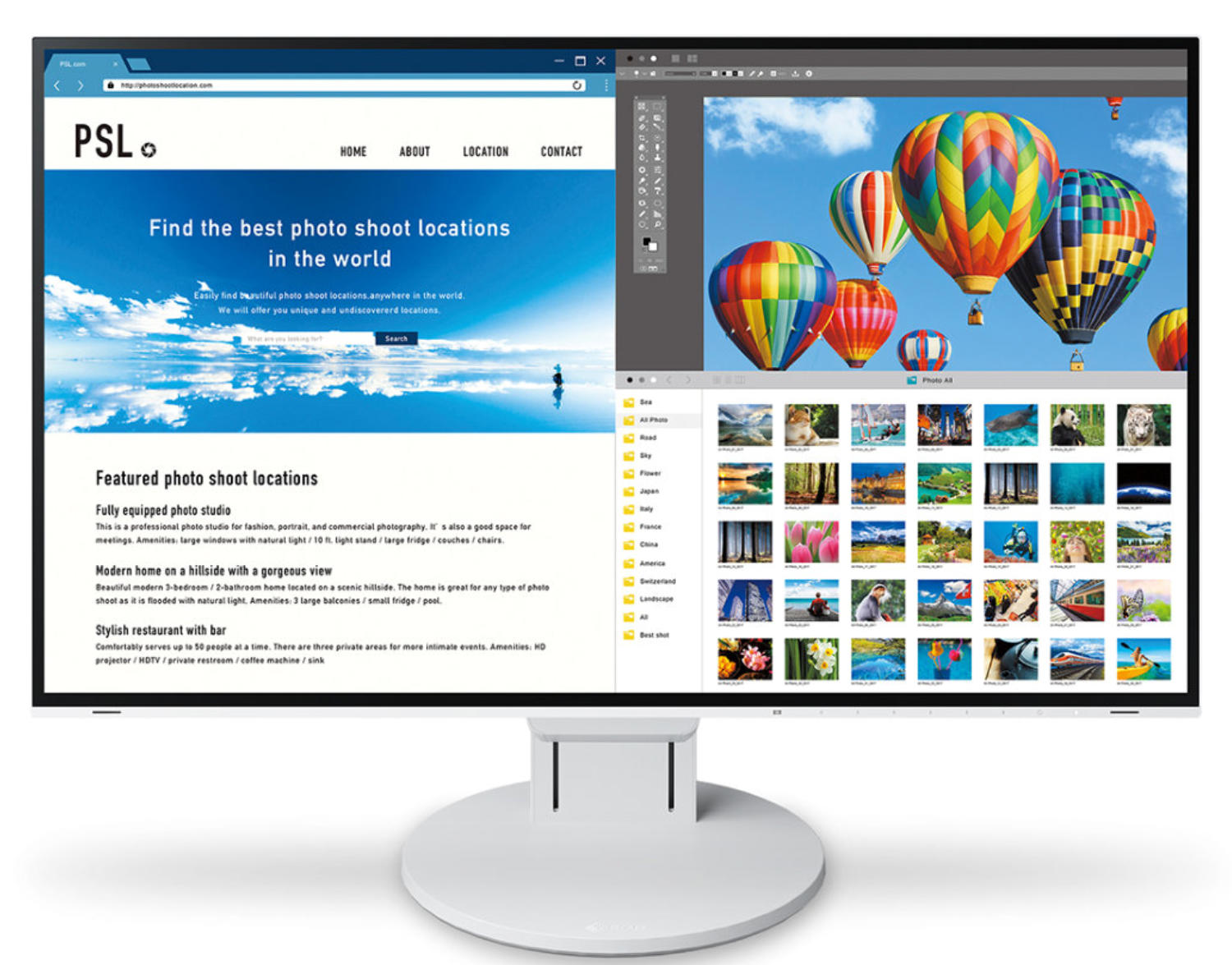

27″ (68 cm) LCD Monitor
Redefining the wordspace.
The generous 27-inch screen holds a 4K resolution giving images great sharpness and clarity. With its sleek, frameless design and USB Type-C connectivity, the EV2785 helps you make the most of your workspace.
Model Variations
      With FlexStand, Without Stand
Cabinet Color
      White, Black
Panel
Type
      IPS
Backlight
      LED
Size
      27.0" / 68.5 cm
Native Resolution
      3840 x 2160 (16:9 aspect ratio)
Viewable Image Size (H x V)
      596.7 x 335.7 mm
Pixel Pitch
      0.155 x 0.155 mm
Display Colors
      16.77 million
Viewing Angles (H / V, typical)
      178°, 178°
Brightness (typical)
      350 cd/m
Contrast Ratio (typical)
      1300:1
Response Time (typical)
      5 ms (Gray-to-gray)
Video Signals
Input Terminals
Digital Scanning Frequency (H / V)
DisplayPort:  31 - 134 kHz, 29 - 31 Hz and 59 - 61 Hz
HDMI: 31 - 135 kHz, 29 - 31 Hz, 49 - 61 Hz and 69 - 71 Hz
USB
Function
      1 port for upstream (USB Type-C)
2-port USB hub(including 1 USB Battery charge port)
Standard
      USB 3.1 Gen1, USB BC 1.2
Audio
Speakers
      1.0 W +1.0 W
Output Terminals
      3.5 mm headphone jack
Sound Adjustment
      Volume
Power
Power Requirements
      AC 100 - 240 V, 50 / 60 Hz
Maximum Power Consumption
      163 W
Typical Power Consumption
      31 W
Power Save Mode
      0.5 W or less
Power Management
      Power Save (DMPM, DisplayPort 1.2a)
Features & Functions

Preset Modes
      Color mode (Paper, Movie, sRGB, User1, User2, DICOM)
Auto EcoView
      Yes
OSD Languages
      English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Dimensions (Landscape, W x H x D)
      611.4 x 367.3 - 545.2 x 230 mm
Dimensions (Without Stand, W x H x D)
      611.4 x 356.3 x 50 mm
Net Weight
      8.2 kg / 18.1 lbs
Net Weight (Without Stand)
      4.9 kg / 10.8 lbs
Height Adjustment Range
      177.9 mm (maximum 195mm)
Tilt
      35° Up, 5° Down
Swivel
      344°
Pivot
      90°
Hole Spacing (VESA Standard)
      100 x 100 mm
Environmental Requirements
Operating Temperature
      5 - 35 °C
Operating Humidity (R.H., non condensing)
      20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.)
      TCO Certified Displays 7, EPEAT Gold (US), TUV/Ergonomics, TUV/GS, RCM, CE, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, China RoHS, CCC, EAC
Dedicated Software

Monitor Control Utility Screen InStyle
      Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
      AC power cord, signal cable (USB Type-C - USB Type-C, DisplayPort - DisplayPort, HDMI -HDMI), cable cover, setup guide
Warranty
      Five Years
Zero bright sub-pixels for six months from date of purchase for purchases made on September 1, 2015 or later.
6
  HDCP 2.2 is not supported.
Page Top
USB Type-C x 1 (with HDCP
6
), DisplayPort 1.2 x 1 (with HDCP
6
),
HDMI x2 (with HDCP)
