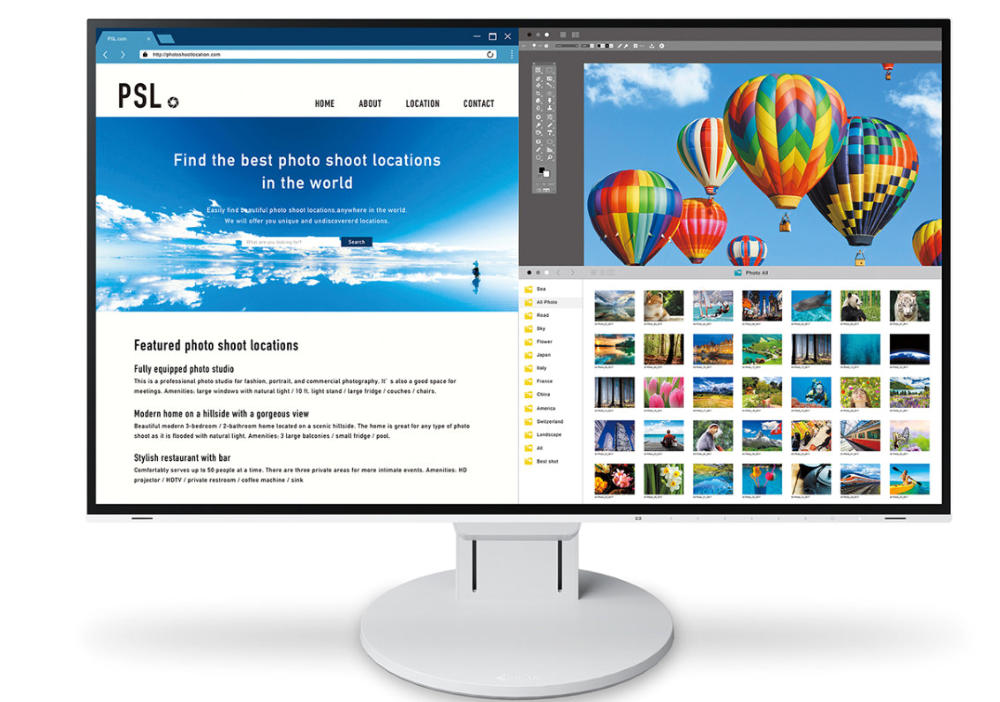

27″ (68 cm) LCD Monitor
Redefining the wordspace.
The generous 27-inch screen holds a 4K resolution giving images
great sharpness and clarity. With its sleek, frameless design and
USB Type-C connectivity, the EV2785 helps you make the most of
your workspace.
Model Variations
With FlexStand, Without Stand
Cabinet Color
White, Black
Panel
Type
IPS
Backlight
LED
Size
27.0" / 68.5 cm
Native Resolution
3840 x 2160 (16:9 aspect ratio)
Viewable Image Size (H x V)
596.7 x 335.7 mm
Pixel Pitch
0.155 x 0.155 mm
Display Colors
16.77 million
Viewing Angles (H / V, typical)
178°, 178°
Brightness (typical)
350 cd/m
Contrast Ratio (typical)
1300:1
Response Time (typical)
5 ms (Gray-to-gray)
Video Signals
Input Terminals
Digital Scanning Frequency (H / V)
DisplayPort: 31 - 134 kHz, 29 - 31 Hz and 59 - 61 Hz
HDMI: 31 - 135 kHz, 29 - 31 Hz, 49 - 61 Hz and 69 - 71 Hz
USB
Function
1 port for upstream (USB Type-C)
2-port USB hub(including 1 USB Battery charge port)
Standard
USB 3.1 Gen1, USB BC 1.2
Audio
Speakers
1.0 W +1.0 W
Output Terminals
3.5 mm headphone jack
Sound Adjustment
Volume
Power
Power Requirements
AC 100 - 240 V, 50 / 60 Hz
Maximum Power Consumption
163 W
Typical Power Consumption
31 W
Power Save Mode
0.5 W or less
Power Management
Power Save (DMPM, DisplayPort 1.2a)
Features & Functions
Preset Modes
Color mode (Paper, Movie, sRGB, User1, User2, DICOM)
Auto EcoView
Yes
OSD Languages
English, German, French, Italian, Japanese, Simplified
Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Dimensions (Landscape, W x H x D)
611.4 x 367.3 - 545.2 x 230 mm
Dimensions (Without Stand, W x H x
D)
611.4 x 356.3 x 50 mm
Net Weight
8.2 kg / 18.1 lbs
Net Weight (Without Stand)
4.9 kg / 10.8 lbs
Height Adjustment Range
177.9 mm (maximum 195mm)
Tilt
35° Up, 5° Down
Swivel
344°
Pivot
90°
Hole Spacing (VESA Standard)
100 x 100 mm
Environmental Requirements
Operating Temperature
5 - 35 °C
Operating Humidity (R.H., non
condensing)
20 - 80 %
Certifications & Standards (Please
contact EIZO for the latest information.)
TCO Certified Displays 7, EPEAT Gold (US),
TUV/Ergonomics, TUV/GS, RCM, CE, CB, cTUVus, FCC-B,
CAN ICES-3 (B), TUV/S, VCCI-B, EPA Energy Star, RoHS,
WEEE, China RoHS, CCC, EAC
Dedicated Software
Monitor Control Utility Screen InStyle
Supported
Supplied Accessories (May vary by
country. Please contact EIZO for details.)
AC power cord, signal cable (USB Type-C - USB Type-C,
DisplayPort - DisplayPort, HDMI -HDMI), cable cover, setup
guide
Warranty
Five Years
Zero bright sub-pixels for six months from date of purchase for
purchases made on September 1, 2015 or later.
HDCP 2.2 is not supported.
Page Top
USB Type-C x 1 (with HDCP
6
), DisplayPort 1.2 x 1 (with HDCP
6
),
HDMI x2 (with HDCP)
