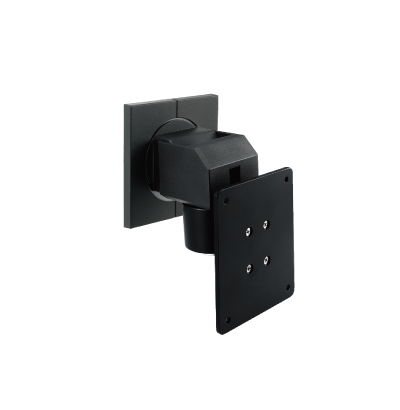

Mount your LCD monitor on a wall and change the screen position as necessary with tilt and swivel capability.
LA-011-W
(for 27/24.1/21.3/21.1/20.8/20.1/20/19/18.1/17" models)
- FlexScan
- ColorEdge
- FORIS
- RadiForce
- DuraVision
- Features
- Specifications
- Documents
- 35° up tilt and 180° swivel wide adjustment range (LA-011-W).
Supported Models
LA-011-W (for 27/24.1/21.3/21.1/20.8/20.1/20/19/18.1/17" models)
FlexScan
| Widescreen Format |
31.5" EV3237 |
|---|---|
|
27" SX2761W, EV2736W |
|
|
24.1" SX2462W, SX2461W, S2433W, S2432W, S2431W, S2411W, S2410W, S2402W, S2401W, HD2442W, HD2441W, EV2436W, EV2411W |
|
|
23" EV2335W, EV2333W, EV2303W |
|
|
22" SX2262W, S2243W, S2242W, S2233W, S2232W, S2231W, S2202W, S2201W |
|
|
21.1" S2111W, S2110W |
|
|
20" S2031W, S2001W |
|
| Square Format |
26.5" EV2730Q |
|
21.3" S2133, S2100, L997, L985EX |
|
|
20.1" S2000, L887, L885 |
|
|
19" S1961, S1932, S1931, S1921-X, S1921, S1911, S1910, S1902, S1901, M1950, M1900, L797, L795, L788-i, L788, L778, L768, L767 |
|
|
18.1" L695, L685EX |
|
|
17" M1700, L567, L557 |
ColorEdge
| 4K |
23.8" CG248-4K |
|---|---|
| CG Series |
24.1" CG246, CG245W, CG243W, CG242W, CG241W |
|
22" CG223W, CG222W |
|
|
21.3" CG211, CG210, CG21 |
|
|
19" CG19 |
|
|
18.1" CG18 |
|
| CX Series |
24.1" CX240 |
| CS Series |
23" CS230 |
| CE Series |
24.1" CE240W |
|
21.1" CE210W |
FORIS
| Widescreen Format |
23.8" FS2434 |
|---|---|
|
23" FS2333, FS2332, FS2331 |
DuraVision
| Security and Surveillance |
23" FDF2305W, FDF2304W-IP, FDF2303W |
|---|---|
| Geographic Information Systems, Air Traffic Control, Virtual Reality |
23.5" FDF2405W |
RadiForce
| Monochrome Monitors |
5MP GX540, GX530, GS521, GS520, GS510, G51-S/-G, G51-BLG / G51-CLG, G51 |
|---|---|
|
3MP GX340, GX320, GS320, GS310-BL, GS310, G33, G31-S, G31, FC-2091 |
|
|
2MP GX240, GX220, GS220, G22, G21-S, G21, G20-S, G20 |
|
|
1MP SMD 19102, G11 |
|
| Color Monitors |
3.7MP MX270W |
|
3MP RX340, RX320, R31, FA-2090 |
|
|
2.3MP MX242W, MX241W, MX240W, MX220W, FlexScan S2411W-M, FlexScan MX240W, FlexScan MH240W |
|
|
2MP RX240, RX220, RX211, RX210, RS210, R22, R21, MX215, MX210, MS230W, FlexScan S2100-M, FlexScan MX210 |
|
|
1MP RS110, R12, R11, MX191, FlexScan S1910-M, FlexScan MX190S, FlexScan MX190 |
|
|
24" Wide ES240W |
| Cabinet Color | Black |
|---|---|
| Compatible Monitor | |
| Load Capacity | 4 - 9 kg / 8.8 - 19.8 lbs |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Range of Movement | |
| Height Adjustment Range | - |
| Tilt | 35° Up, 0° Down |
| Swivel | 90° Right, 90° Left |
| Pivot | 90° |
| Mounting Requirements | Mounting Wall Load Capacity: 130 kg minimum |
| Weight | 1.4 kg / 3.1 lbs |
| Dimensions (W x H x D) | 109 x 172.1 x 113 mm |
Manuals
Languages
| Document | Language | Size | Download |
|---|---|---|---|
| LA-030-W, LA-011-W User's Manual (English) | English | 1.0e+3 KB |  |
