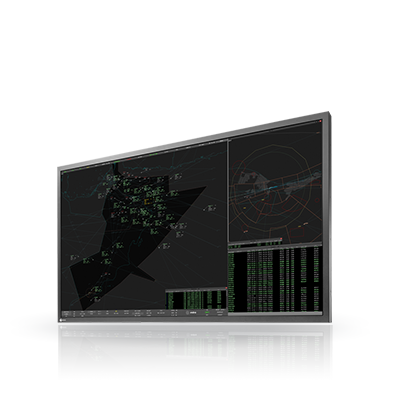

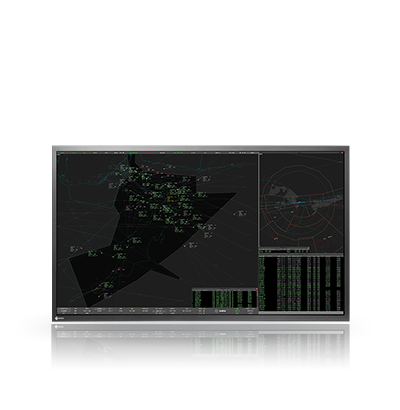

Raptor 5824
57.5" (146 cm) Primary Control Monitor
The Raptor RP5824 is a 57.5-inch 4K × 2K resolution primary control monitor developed specifically for air traffic control centers. Its large 8 megapixel screen allows controllers to view more data simultaneously in a single location for a streamlined workflow.
2 items
  • Features
  • Specifications
  • Documents

Streamline Your Workstation

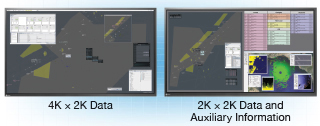

Display 4K × 2K resolution data in full on one screen without the obtrusive bezels typically found in multi-monitor workstations. In addition, 2K × 2K and auxiliary information can be displayed simultaneously on a single screen using EIZO’s Large Monitor Manager* for controlling video signals. This allows controllers to view more information easily in one place instead of across multiple monitors.
*Please contact atc@eizo.com for more information.


Mission-Critical Redundancy

Redundant power supplies and backlight systems give the monitor a high degree of operational reliability for creating a fail-safe environment.

Brightness Stabilization

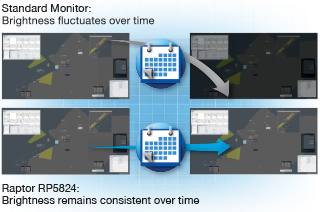

EIZO’s full automated stability function uses an internal backlight sensor to stabilize the brightness level throughout the life of the monitor, compensating for fluctuations caused by variations in ambient temperature and the passage of time.

brightness stabilization

Optimized Brightness Settings

The monitor comes with several preset brightness settings optimized for ATC environments. This allows the controller to conveniently select the setting most appropriate according to ambient lighting conditions and helps to reduce eye fatigue.

High Contrast for Clear Images

The monitor’s exceptional contrast ratio of 4000:1 displays ATC data with a high level of clarity for distinguishing details.

Wide Viewing Angles

The panel has 176° wide viewing angles so it exhibits minimal change in contrast and hue when viewed from off center, allowing the controller to see all data on the screen from any position without compromising clarity. This also allows more than one person to view the screen more comfortably.

wide viewing angles.jpg

Convenient Installation

The monitor supports VESA mounting for conveniently installing in open or closed ATC consoles.

Long-Lasting Direct LED Backlight

The monitor is equipped with two independent direct LED backlight systems that are highly efficient compared to conventional CCFL backlights, saving energy even when running at high brightness levels. The direct backlight systems also offer superior brightness uniformity for smoother images across the entire screen compared to edge-type backlight solutions.


Size 57.5"/ 146 cm (1,460 mm diagonal)
Native Resolution 3840 x 2160 (16:9 aspect ratio)
Viewable Image Size (H x V) 1270 x 721 mm
Pixel Pitch 0.3307 x 0.3338
Grayscale Tones 256 tones
Display Colors 16.7 million
Viewing Angles (H / V, typical) 176°, 176°
Brightness (typical) 300 cd/m2 (maximum)
Contrast Ratio (typical) 4000:1
Response Time (typical) 9.5 ms (Gray to Gray)
Video Signals
Input Terminals DVI-D 24 pin (dual link) x 2
Digital Scanning Frequency (H / V) 257 MHz (pixel), 59.7 - 60.5 Hz (Vsync)
Power Requirements AC 100 - 240 V
Maximum Power Consumption 400 W
Power Save Mode 38 W
Physical Specifications
Dimensions (Landscape, W x H x D) 1319 x 776 x 146 mm
Features & Functions
Communication Interface USB B Connector
Physical Specifications
Net Weight 47 kg / 103.6 lbs
Environmental Requirements
Operating Temperature 5 - 40 °C / 41 - 104°F
Operating Humidity (R.H., non condensing) Max. 80% (no condensation)
Storage Temperature -20 - 55 °C / -4 - 131°F
Certifications & Standards (Please contact EIZO for the latest information.) CE, UL, FCC, RoHS, WEEE, CCC
Warranty Two Years
