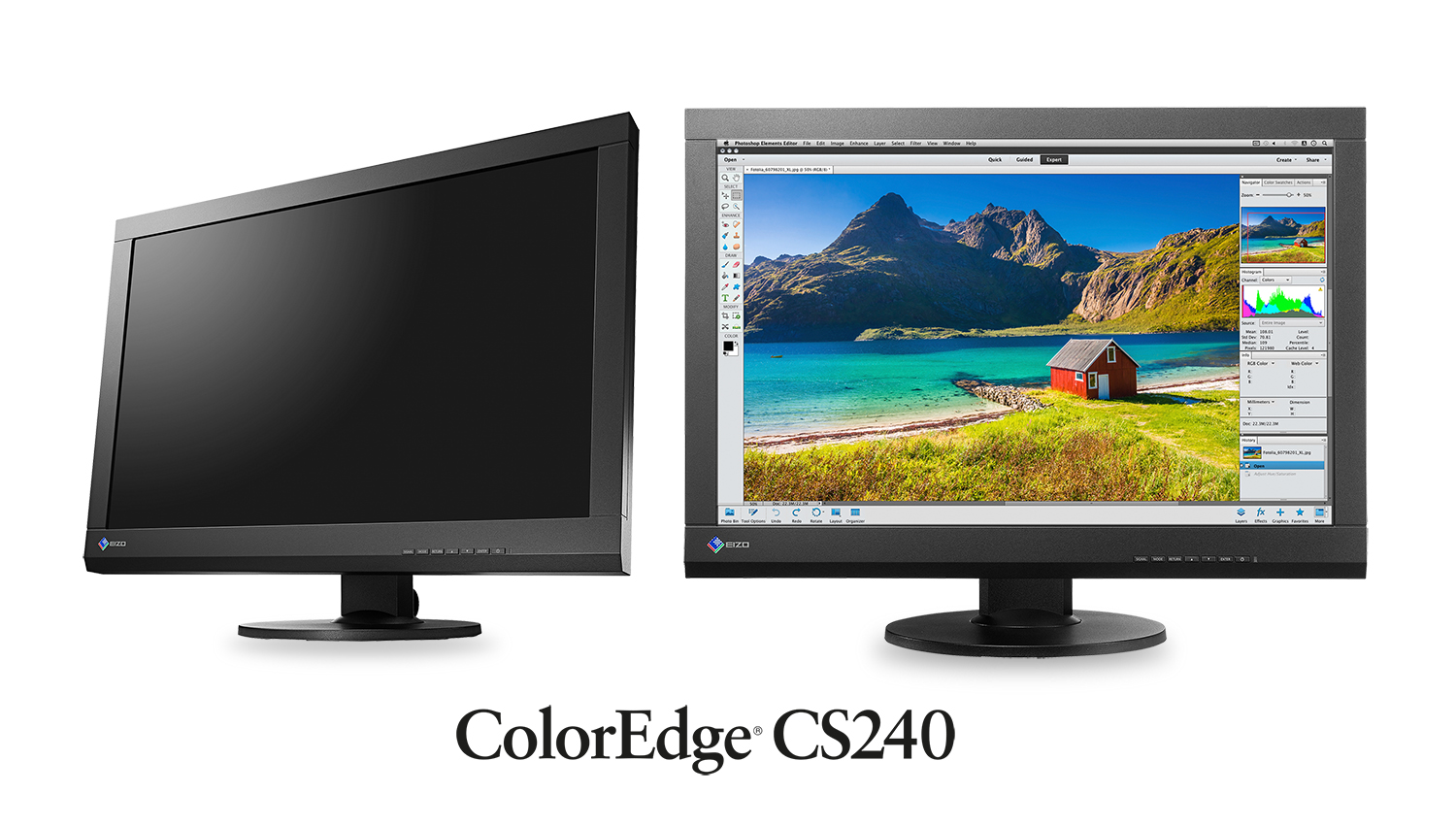

ColorEdge CS240
24.1" (61 cm) Hardware Calibration LCD Monitor
The entry-level graphics monitor
with all the essentials.
Made for photographers and designers from hobbyist on up, the CS240 delivers the hardware and software essentials needed in a graphics monitor. These include a wide color gamut, brightness uniformity, and EIZO’s ColorNavigator 6 calibration software with Mac/Windows compatibility and support for a wide range of calibration devices.
  • Contact EIZO
2 items

  • Features
  • Specifications
  • Documents
  • Accessories
  • Awards & Reviews

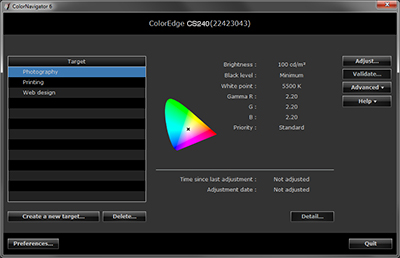

Simple and Precise Calibration with ColorNavigator 6

ColorNavigator 6

The calibration software available with most graphics monitors is usually third-party software with limited support for operating systems and calibration devices. In addition, the software might only let you create one or two profiles which is restricting if you work in more than one color space or if you work on multiple tasks, each with their own requirements.

The ColorEdge CS240 comes bundled with EIZO’s own ColorNavigator 6 calibration software. Because ColorNavigator is developed in-house, EIZO has ensured it is compatible with Mac, Windows, and Linux OSes and works with a wide range of measurement devices from X-Rite, DataColor, and other manufacturers. For simplicity, preset adjustment targets are provided for photography, web design, and printing. More advanced users can set their own values for brightness, white point, and gamma, and create their own target profiles. Calibration only takes a few minutes to complete.

ColorNavigator 6 offers several advanced functions such as measuring the white of the paper to be used for printing for better screen-to-print matching and profile validation for verifying calibration results.



How to Color Match Your ColorEdge Monitor and Photo Prints

Learn more about color matching.

How to Color Match Your ColorEdge Monitor and Photo Prints

In this guide, we go over how you can retouch and print digital photos on your own home inkjet printer and match the colors with monitor.

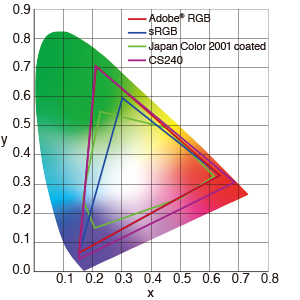

99% of the Adobe RGB Color Space

color gamutAn IPS panel with a wide color gamut reproduces 99% of the Adobe RGB color space so images shot in RAW can be converted to Adobe RGB or images shot in Adobe RGB will be displayed correctly. The colors seen in photos of vibrant blue skies and lush green forests will be reproduced faithfully.















Stable Image Display Free from Environmental Influence

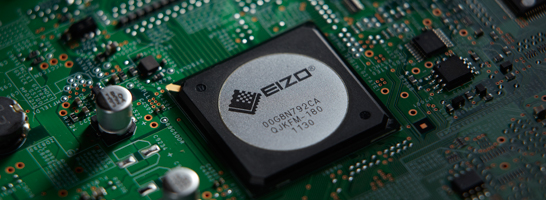

EIZO-Developed ASIC at the Core

All ColorEdge models come with an ASIC (application specific integrated circuit) developed by EIZO to meet the needs of the graphics market. The ASIC has its own algorithms used in high-precision color processing to produce smooth color tones.

EIZO ASIC

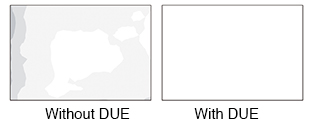

CS240 DUEBrightness and Color Uniformity with DUE

Fluctuations in brightness and chromaticity on different parts of the screen are a common trait of LCD monitors. To counteract this, the monitor incorporates EIZO's patented digital uniformity equalizer (DUE) technology.



Predictable Color You Can Depend on

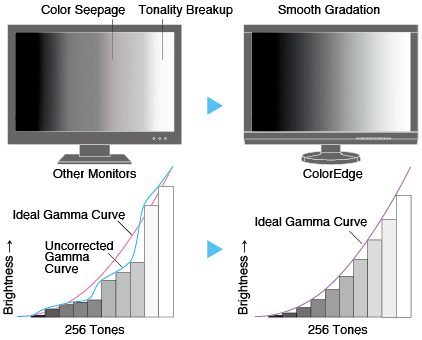

Individually Adjusted at the Factory

The gamma level for each ColorEdge monitor is adjusted at the factory. This is accomplished by measuring the R, G, and B gamma values from 0 – 255, then using the monitor’s 16-bit look-up table (LUT) to select the 256 most appropriate tones to achieve the desired value.

individually adjusted at the factory

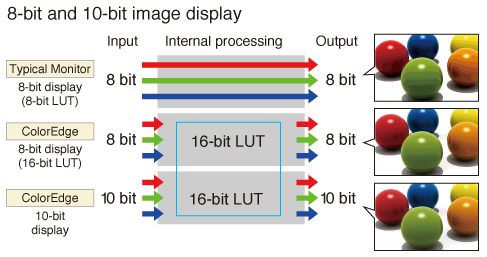

10-Bit Simultaneous Display

Using the DisplayPort input, the monitor offers 10-bit simultaneous color display* from a 16-bit look-up table which means it can show more than one billion colors simultaneously. This is 64 times as many colors as you get with 8-bit display which results in even smoother color gradations and reduced Delta-E between two adjacent colors.
*A graphics board and software which support 10-bit output are also necessary for 10-bi display.

10bitd display

Comfort and Convenience

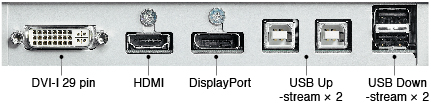

Multiple Inputs

connectorsDisplayPort, HDMI, and DVI-I inputs are included for connecting to various types of graphics boards, The HDMI input also offers direct connection with digital cameras. Two USB upstream ports allow two computers to be connected at once so it’s not necessary to reconnect the USB cable when using the ColorNavigator software and switching between the two computers.

Smooth Display of Video

For video editing or post production work, an overdrive circuit is included to reduce gray-to-gray response time to 7.7 ms and ensure that moving images look clean and sharp with a minimum of ghosting.

LED Backlight with Flicker-Free Display

An LED backlight reduces power consumption to just 27 watts during typical operation. When using the monitor at a low brightness setting, the ColorEdge CS240 utilizes brightness modulation technology for flicker-free image display to help prevent eye fatigue.

Adjustable Stand

Adjust the screen to the most comfortable angle for you and reposition it to show your work to a colleague or client. The monitor comes with a versatile stand that offers height, tilt, and swivel adjustments as well as portrait mode display.

Flexible stand

monitor hoodOptional Shading Hood for Portrait and Landscape Modes

Most shading hoods can only be used in landscape mode, but a unique hood that is designed for portrait mode as well is available as an option.





Commitment to Quality and the Environment

5-Year Warranty

The monitor is backed by a manufacturer’s five-year warranty that covers all components including the LCD panel. This is at least two years more than the warranty of most monitors to ensure a long service life and low total cost of ownership. Rather than outsource production and simply replace a product if it becomes defective during its warranty period, we manufacture our products at our own factories to ensure they will last the full five years.

5 Year Warranty

Mercury-Free LED Backlight

The LED backlight used with the LCD panel contains no mercury so it will have minimal environmental impact when it is eventually disposed of.

Zero Watts When Turned Off

When the monitor is turned off via the power button on its front bezel it consumes no electricity.

Cabinet Color Black
Panel
Type IPS
Backlight Wide-Gamut LED
Size 24.1" / 61 cm (611 mm diagonal)
Native Resolution 1920 x 1200 (16:10 aspect ratio)
Viewable Image Size (H x V) 518.4 x 324 mm
Pixel Pitch 0.270 x 0.270 mm
Grayscale Tones DisplayPort, HDMI: 1024 tones (a palette of 65281 tones)
DVI: 256 tones (a palette of 65281 tones)
Display Colors DisplayPort, HDMI: 1.07 billion from a palette of 278 trillion
DVI: 16.77 million from a palette of 278 trillion
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 350 cd/m2
Recommended Brightness for Calibration 120 cd/m2 or less
Contrast Ratio (typical) 1000:1
Response Time (typical) 7.7 ms (Gray-to-gray)
Wide Gamut Coverage (typical) Adobe RGB: 99%
Video Signals
Input Terminals DVI-I 29 pin (with HDCP), DisplayPort (with HDCP), HDMI (with HDCP, Deep Color)
Digital Scanning Frequency (H / V) DisplayPort, DVI: 26 - 78 kHz, 23.75 - 63 Hz (VGA Text: 69 - 71 Hz)

HDMI: 15 - 78 kHz, 23.75 - 61 Hz (VGA Text: 69 - 71 Hz)
Analog Scanning Frequency (H / V) 26 - 78 kHz, 47.5 - 61 Hz
USB
Function 2 ports for monitor control
2-port USB hub
Standard USB 2.0
Power
Power Requirements AC 100 - 240 V, 50 / 60 Hz
Maximum Power Consumption 68W
Typical Power Consumption 27W
Power Save Mode Less than 0.5 W
Standby Mode Less than 0.5 W
Power Management Power Save (VESA DPM, DisplayPort Version 1.1a, and DVI DMPM)
Features & Functions
Digital Uniformity Equalizer Yes
Preset Modes Color Mode (Custom, Paper, Adobe RGB, sRGB, Calibration)
OSD Languages English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Others Screen Adjustment (Clock, Phase, Position, Resolution, Range (Auto)), Screen Size (full screen, enlarge, normal), Color Adjustment (Brightness, Independent 6-Color Control, Gamma, Color Gamut, Temperature, Saturation, Hue, Gain, Reset), HDMI Settings (Noise Reduction), Range Extension, Signal Switching, OSD Menu Settings, Overdrive, Input Skip, Mode Skip, USB Selection, Signal Info, Monitor Info, DUE Priority, Key Lock, Signal Bandwidth, Power Indicator, All Reset
Physical Specifications
Dimensions (Landscape, W x H x D) 575 x 423 - 553 x 245 mm
Dimensions (Portrait, W x H x D) 398 x 586 - 651 x 245 mm
Dimensions (Without Stand, W x H x D) 575 x 398 x 71 mm
Net Weight 8.7 kg / 19.2 lbs
Net Weight (Without Stand) 6.0kg / 13.2 lbs
Height Adjustment Range 130 mm
Tilt 35° Up, 5° Down
Swivel 344°
Pivot 90°
Hole Spacing (VESA Standard) 100 x 100 mm
Environmental Requirements
Operating Temperature 0 - 35 °C
Operating Humidity (R.H., non condensing) 20 - 80 %
Certifications & Standards (Please contact EIZO for the latest information.) CB, CE, TUV/GS, cTUVus, FCC-B, Canadian ICES-003-B, VCCI-B, TUV/Ergonomics, RCM, RoHS, WEEE, GOST-R
Supplied Accessories AC power cord, signal cables (DVI-D - DVI-D, Mini DisplayPort - DisplayPort), USB cable, setup guide, EIZO LCD Utility Disk (ColorNavigator software, PDF user's manual), quick reference, warranty card
Warranty Five Years 1 2 5
  1. 1  The RGB full pixel failure is zero for up to 12 months after date of purchase based on ISO 9241-307 (pixel failure class I).
  2. 2  With current LCD technology, a panel may contain a limited number of missing or flickering pixels.
  3. 5  If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.

Brochures

NEW
ColorEdge Series (CG318-4K, CG248-4K, CG277, CG247, CX271, CX241, CS240, CS230)
2.92 MB

Download



Color Management Handbook Version 3
9.69 MB

Download



EIZO's Guide to a Further Enjoyment of Digital Photography
3.28 MB

Download



ColorNavigator 6 How-to-Use-Guide
1.47 MB

Download



Manuals

Languages



Document Language Size Download
CS240 User's manual English 3.9 MB Download
CS240 Setup guide English
Chinese-Simplified
French
German
Russian
5.17 MB Download
ColorNavigator Ver.6.4.9 User's manual English 6.14 MB Download
CS240 Setup guide Arabic 4.85 MB Download
CS240 User's manual Chinese-Simplified 3.79 MB Download
CS240 Setup guide Chinese-Traditional 5.01 MB Download
CS240 Setup guide Czech 4.82 MB Download
CS240 User's manual Czech 1.25 MB Download
CS240 Setup guide Danish 4.84 MB Download
CS240 Setup guide Dutch 4.83 MB Download
CS240 Setup guide Finnish 4.79 MB Download
CS240 User's manual French 3.98 MB Download
CS240 User's manual German 3.96 MB Download
CS240 Setup guide Greek 4.84 MB Download
CS240 Setup guide Italian 4.84 MB Download
CS240 Setup guide Korean 4.91 MB Download
CS240 Setup guide Norwegian 4.82 MB Download
CS240 Setup guide Polish 4.84 MB Download
CS240 Setup guide Portuguese 4.82 MB Download
CS240 User's manual Russian 3.84 MB Download
CS240 Setup guide Spanish 4.84 MB Download
CS240 Setup guide Swedish 4.84 MB Download
CS240 Setup guide Turkish 4.85 MB Download
Monitor Hood
CH7
CH7




PRAD Inside Display Technologies (Germany)

February 9, 2015

Very Good (5 stars out of 5)

"The full coverage of the ISO Coated -v2-, sRGB and Adobe RGB color space makes the CS240 color space independent. If no color management-enabled workflow possible, it is no problem thanks to flexible color space emulation by ColorNavigator."

German
Google Translation



photoreview

Photo Review (Australia)

January 2015

Editor's Choice

"Positioned at the entry-level to the company's 'professional' monitor line-up, the CS240 provides many of the features of the company's premium products at a mid-level price."



Wazer Photo (Italy) Gold award best value

Wazer Photo (Italy)

December, 2014

Gold Award (5 stars out of 5)

Best Value for Money Award

"I can say with absolute certainty, addressing an audience of photographers, you will never find on the market a more complete and monitor performance of the CS240 in its price range."
Italian
Google Translation



PC Pro

PC Pro (UK)

November 12, 2014

PC Pro Recommended (5 stars out of 5)

"Colours look solid and even across every inch of the display, with not a hint of mottling…"
